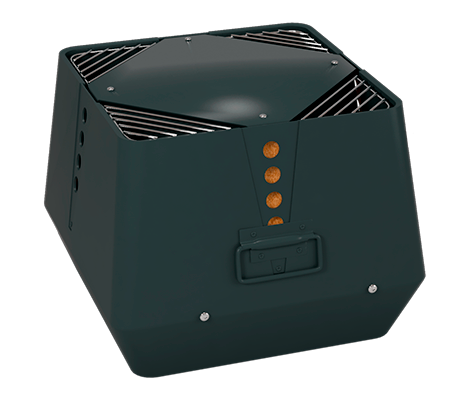

Exodraft RSV Chimney Fan

The RSV model discharges flue gases vertically and is recommended for windy areas and for locations where the top of the chimney is below the ridge height of the house or where the roof is made of combustible materials.

RSV can be mounted on the chimney of a wood-burning stove, fireplace, or boiler. The chimney fan is placed on top of the chimney, where it creates a negative pressure in the flue pipe and chimney for optimal draft. It can be opened, making it easy for the chimney sweeper to clean the chimney. The chimney fan can be used on both brick and steel chimneys.

Features

Direction of Discharge

Vertical

Type of Fuel

Solid Fuel

Max Continuous Temperature

250 °C

Application

Private, Commercial, Industry

Technical Specifications



Product

 Rotations/max.

Voltage

Amp

kW

Weight

Capacity

RSV009

1400

1 x 203 V

0,14 A

0,05

13 kg

740 m³/h

RSV012

1400

1 x 203 V

0,35 A

0,13

17 kg

1,600 m³/h

RSV014

1400

1 x 203 V

0,8 A

0,16

24 kg

2,350 m³/h

RSV016

1400

1 x 203 V

1,8 A

0,32

35 kg

3,400 m³/h

RSV160

1400

1 x 203 V

0,4 A

0,04

12 kg

500 m³/h

RSV200

1400

1 x 203 V

0,4 A

0,07

18 kg

1,100 m³/h

RSV250

1400

1 x 230 V

0,8 A

0,16

27 kg

1,500 m³/h

RSV315

1400

1 x 230 V

1,8 A

0,37

37 kg

3,000 m³/h

RSV400

1400

1 x 230 V

2,6 A

0,60

47 kg

4,400m³/h

RSV400

1720

3 x 230 V

4,0 A

0,75

52 kg

4,800 m³/h

RSV450

1720

3 x 230 V

6,5 A

1,5

58 kg

7,300 m³/h
