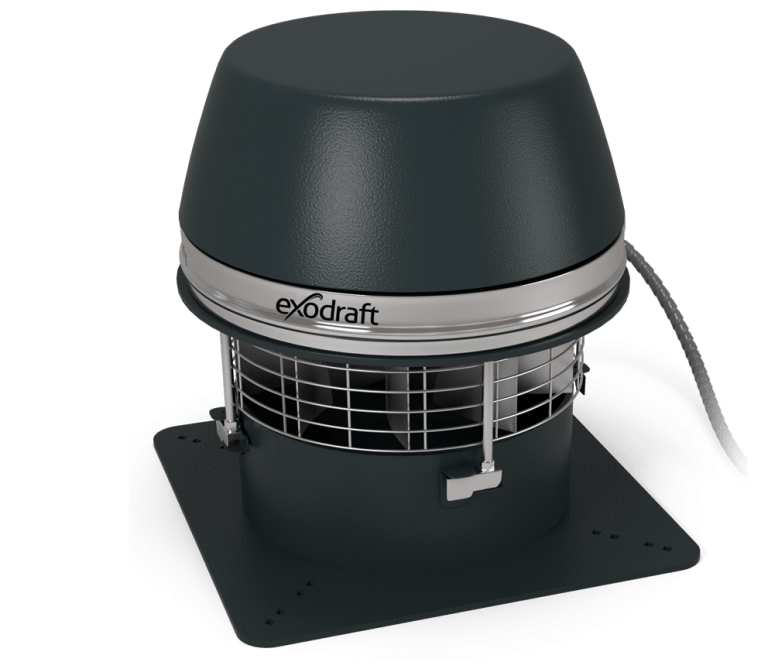

Exodraft RSHT Chimney Fan

The RSHT flue gas fan is designed to operate in extreme conditions where the temperatures of the flue gases are exceptionally high. It is suitable for installation in the chimney of a sauna stove.

Exodraft’s chimney fan of type RSHT is designed to withstand very high flue gas temperatures and discharge the flue gas horizontally.



To handle these high temperatures, the RSHT has a patented cooling wheel that cools the motor while the chimney fan is in operation.



The chimney fan is placed on top of the chimney, where it creates negative pressure in the flue pipe and the chimney for optimal draught.



It can be opened, making it easy for the chimney sweeper to clean the chimney.

Features

Direction of Discharge

Horizontal

Type of Fuel

All Types of Fuel

Max Continuous Temperature

500 °C

Application

Commercial, Industry

Technical Specifications



Product

 Rotations/max.

Voltage

Amp

kW

 Weight

Capacity

RSHT009

1400

1 x 203 V

0,4 A

0,09

12 kg

400 m³/h

RSHT012

1400

1 x 203 V

0,6 A

0,13

15 kg

800 m³/h

RSHT014

1400

1 x 203 V

1,2 A

0,29

19 kg

1,300 m³/h

RSHT016

1400

1 x 203 V

1,8 A

0,37

22 kg

2,350 m³/h
