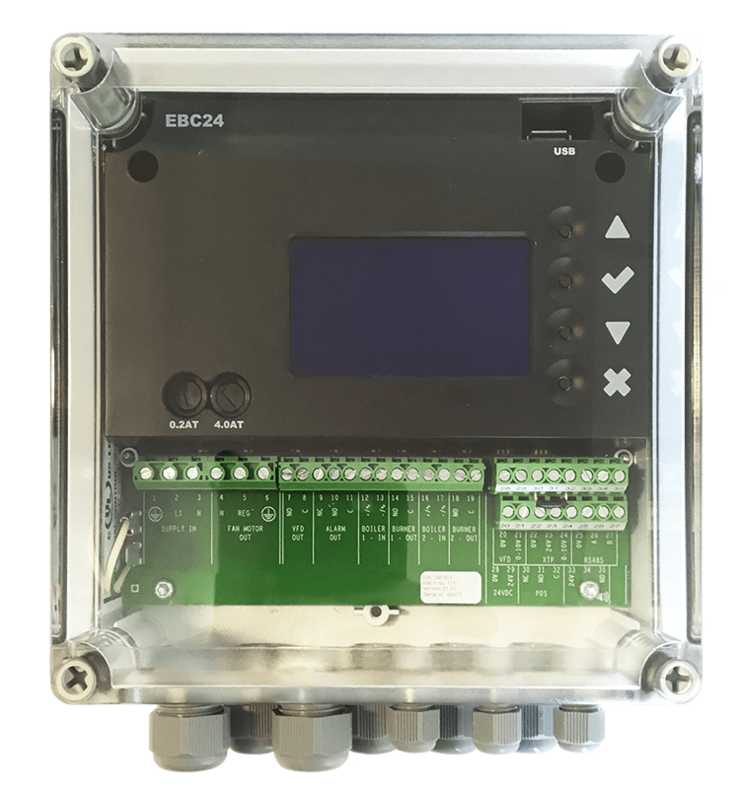

Exodraft EBC24 Control Unit

The Exodratf EBC24 can be connected to one or two burners, and with the help of an ES12 relay box, it can be connected to up to 4 burners/heating installations.

The EBC24 control unit is a PID-based (programmable temperature control) automatic controller that regulates the pressure or draught in the chimney to keep it constant.



The control unit automatically adjusts the speed of the chimney fan according to the amount of flue gases in the venting duct.



The EBC24 has a built-in safety system that disconnects the burner connected to the chimney system in case of insufficient chimney draught.

The control unit is not limited to one type of fuel, heating appliance, or chimney.

Features

Operation

None

Compatible with

All Types of Fuel

Aesthetics

Simple Design

Technology

Automatic

Technical Specifications



Dimensions (H x W x D)

175 x 175 x 100 mm

Weight

1,5 kg

Density class

IP 54

Control range

0 Pa – 150 Pa

Fuse

4.0T

Voltage

230 V AC, 50 Hz

Power consumption

475 W

Ambient temperature

-20 ºC – +50 ºC

Material

ABS
