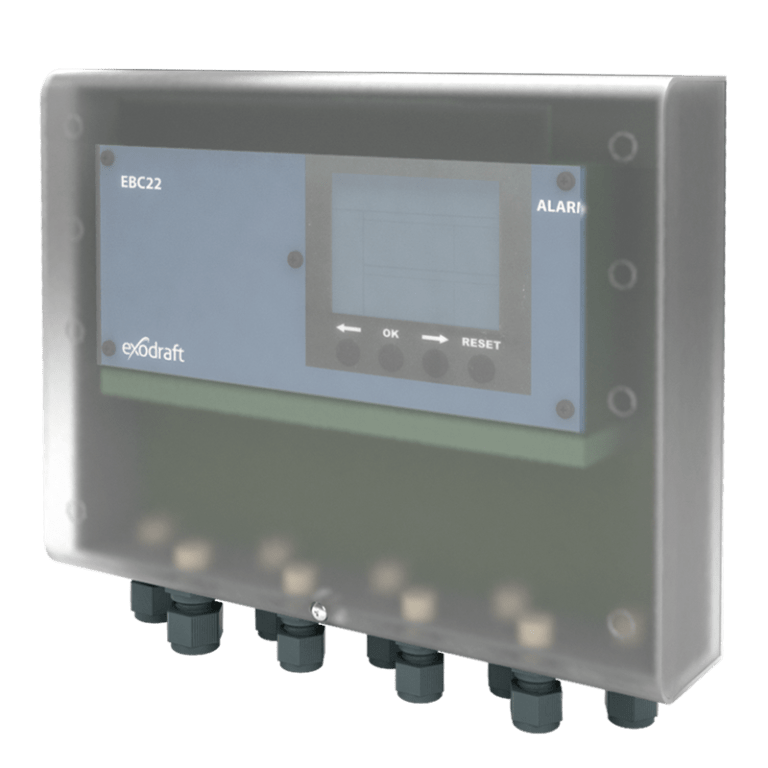

Exodraft EBC22 Control Unit

The EBC22 control unit is an automatic control system with a pressure sensor (XTP sensor) for one or more boilers or other heating installations where multiple units are connected to the same chimney.

The included pressure sensor is installed in the chimney, where it monitors and sends signals to the control unit to maintain a predefined negative pressure by regulating the speed of the chimney fan.

When starting boilers or other heating installations, a signal is sent to the EBC22, which starts the chimney fan at maximum speed.



When the optimal chimney draught is achieved, a signal is sent to start the boilers’ burners/heating installations.

Features

Operation

None

Compatible with

All Chimney Fans

Aesthetics

Simple Design

Technology

Automatic

Technical Specifications



Dimensions (H x B x D)

204 x 240 x 77 mm

Weight

1,62 kg

 Density class

IP 54

Control range

0 Pa to 150 Pa

Fuse

T 4 A

Voltage

230 V AC, 50 Hz

Power consumption

475 W

Ambient temperature

-20 ºC – +60 ºC

Material

ABS
