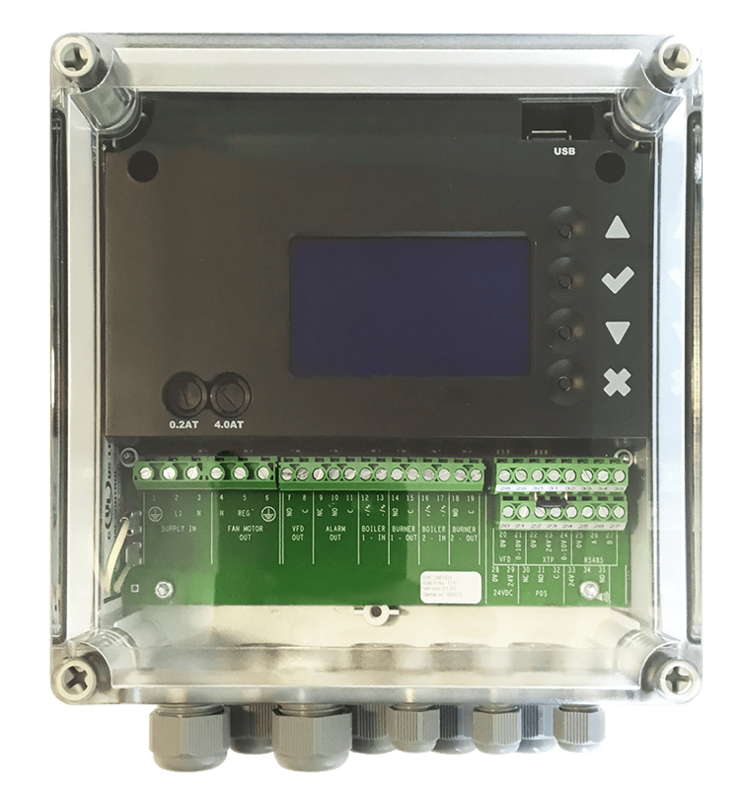

Exodraft EBC10 Control Unit

The EBC10v2 control unit is an automatic control with a pressure sensor (XTP sensor) for a single boiler or other installation with one heat source.

The included pressure sensor is installed in the chimney, where it monitors and sends signals to the control unit to maintain a predefined negative pressure by regulating the speed of the chimney fan.



When the boiler or other heating installation is started, a signal is sent to the EBC10v2, which starts the chimney fan at the highest speed.



Once the optimal chimney draught is achieved, a signal is sent to start the boiler’s burners/heating installation.

Features

Operation

None

Compatible with

Small and Medium-Sized Chimney Fans

Aesthetics

Simple Design

Technology

Automatic

Technical Specifications



Dimensions (H x B x D)

175 x 175 x 100 mm

Weight

1,5 kg

IP-rating

IP 54

Control range

0 Pa – 150 Pa

Fuse

4.0T

Voltage

230 V AC, 50 Hz

Power consumption

475 W

Ambient temperature

-20 ºC – +50 ºC

Material

ABS
